Storage

Storage Principles

App-Specific Requirements

• Store files that are meant for our use only
• Store files that we intend to share with other apps
  • e.g. taking a photo
• Store private, primitive data
  • Config data, passwords, cookies & keys, etc.
• Store private, structured data
  • text messages

Mobile Storage Principles

• Efficiency and sharing vs privacy and security
  • Limited storage capacity
  • Highly personal information stored
  • Lots of different data types stored on phone
• Media
  • Images, videos, music

Access to the mail should be protected since this is sensitive user data. However, if a reference to an image attachment is given to an image viewer, that image viewer will not have permission to open the attachment since it has no reason to hold a permission to access all e-mail.

Storage Directories

/system -> stores Android OS & libraries

/data -> where user data is stored (every application is a user)

/mnt/sdcard (symlinked as sdcard) -> External Storage

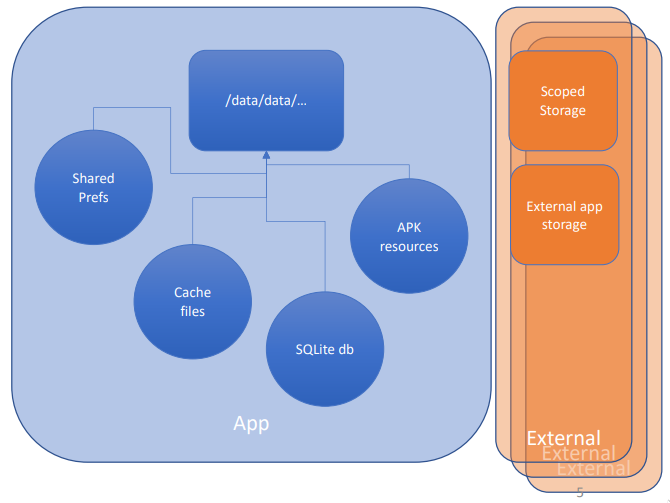

Basic Logical Data Storage on Android

Different Volumes

Internal

• Limited space for app-specific data
• Reliable (not removable)
• Soldered RAM

External

• Lots of data
• May (or may not) be physically removable

Different kinds of data

• Data that is only meaningful for our app should use app-specific storage
• Shareable media content should use shared storage so that other apps can access the content
  • Also called scoped storage

File-based abstractions

• Shared preferences
• File-based storage
• SQLite database
  • Structured data, small binary blobs

Internal File Storage

Internal data storage is private to the app

• Other apps (and the user) cannot access it
  • Kernel-enforced user perms
• Removed on uninstall
• Data is stored in files
  • /data/data/com.example.project/files/
  • Full path not accessible; files/ becomes the chroot
  • This ensures we cannot traverse the directory upwards and gain access to other applications' files

Cache Files

/data/data/com.example.project/cache

getCacheDir() -> gets application’s file directory

Programmer should manage the files

• May be deleted when internal storage becomes full
• Will be deleted when application is uninstalled
• A well-behaved application will delete them when no longer in use
• Recommended to use less than 1MB

Shared Preferences

• Stored on a per-application basis
  • e.g. saving config info (settings)
  • Should not be used for data transfer (use intents and binders instead)
• Primitive data in key-value pairs
• Can have multiple preference files per application

<?xml version='1.0' encoding='utf-8' standalone='yes' ?>
<map>
    <string name="colourscheme">light</string>
</map>

SharedPreferences settings = getSharedPreferences(CONFIG_STORAGE_NAME, 0);
SharedPreferences.Editor editor = settings.editor;

if (settings.getBoolean(MainActivity.CONFIG_THEME, false))
    setTheme(...);
else
    ...

External Storage

Legacy name

• Every Android device provides externally accessible storage (SD card)
  • Even phones without a physical SD card must have a logical representation of external storage
    • Most phones will have one storage device partitioned into internal / external
    • Phones must do this to conform to the Android API
  • Private Application files
    • Internal storage on the external partition
    • getExternalFilesDir()
    • /sdcard/Android/data/com.example.project/
  • Public general files
    • World reachable
    • Other apps can read and modify these files
    • Each user has their own virtual SD card
• Can be mounted externally (and unmounted/disconnected)

Getting Access to External Storage

• Should check state with Enviroment.getExternalStorageState()
  • It is a separate file system, potentially removable
    • Environment.MEDIA_MOUNTED
    • Environment.MEDIA_MOUNTED_READ_ONLY
• Use getExternalStoragePublicDirectory (String type) to obtain file for the directory
  • Media is stored by type
    • Music in the music dir, etc.
  • Pass a type to obtain the subdirectory for that type

Getting Scoped storage access

• To access files that other apps have created
  • We must have READ_EXTERNAL_STORAGE permission (in the manifest)
    • With this one permission, the app can do whatever (look at downloads, listen to music, look at pictures, etc.)
    • This is where scoped storage comes into play
  • The files must reside in the media collection (images/music/videos, etc.)
  • or request legacy storage MANAGE_EXTERNAL_STORAGE (before Android 11)
• Apps only have access to
  • App-specific directory on external storage
  • Specific types of media that the app has created and contributed to well-defined collections
    • If the app takes a picture, it is allowed to store and look at that picture but not allowed to access pictures not taken by that app
    • You don't need to request perms to read/write images that we are writing to the MediaStorage

Android Databases

When the data stored is logically structured, queries are needed to find it based on the structure.

• Android provides local database support
  • Can run full SQL queries
• Each app’s databases are local to it
  • Database.db stored in internal storage
• Powered by SQLite

Android and SQLite

• Wrapped in two main classes
  • Database represented by SQLiteDatabase object
    • Allows us to run SQL queries on the database
  • SQLiteOpenHelper
    • Supports the application lifecycle
    • SQLiteOpenHelper -> onCreate()
      • Creates the database the first time it is called
      • This database will exist until the application is installed
    • SQLiteOpenHelper -> onUpdate(int oldVer, int newVer)
      • Changing the version number allows the database to be dropped and recreated
• Create an instance of our SQLiteOpenHelper subclass
• Get reference to SQLiteDatabase using
  • getReadableDatabase()
  • getWriteableDatabase()

Querying a Database

void execSQL() -> used to execute SQL queries that don't return anything

query() and rawQuery()

• These return a Cursor object pointing to the results

Cursor rawQuery (String sql, String[] selectionArgs)

Cursors

• Provide random access to results of a query
• Enable us to enumerate the rows returned by the query
  • moveToFirst(), moveToNext()
  • getString(colIndex), getInt(colIndex)
• Have a close() method to close the query when finished

We can pass cursors to other applications

CursorLoader

• A query may last some time
  • Database may be large
  • May be in a different process
  • Don’t block the main thread
• CursorLoader
  • Populates views asynchronously
  • Auto-updating

(deprecated)

Data-Driven Views

• Connect a cursor to a CursorAdapter and a ListView
  • Think mapping rows of a database to which entry in the list
  • Each row must have an ID field
• RecyclerView
  • An optimised, flexible version of the above
  • Only creates views for visible data
    • As the user scrolls, more data is added
  • We can define our own adaptor

Database Abstraction

Abstraction of database architecture

• Easier to update storage code
• Expose column indices as static class variables
  • c.getInt(0) ✗
  • c.getInt(DBHelper.NAME) ✓
• Helper methods keep database internals from leaking into other classes
  • Return a collection of results rather than the cursor
• Sanitise user inputs
  • SQL injections still apply
