Elgamal Encryption

Extending Diffie-Hellman to Encryption

What we could do is multiply the plain text by the key generated

y\equiv x\cdot k_{ab}\mod p \rightarrow x\equiv y\cdot k_{ab}^{-1}

Elgamal

• Because this is public key encryption, we can make some efficiency savings by not sending all the information both ways every time
• If encryption is from Alice to Bob, Bob only needs to publish a public key once
• The scheme provides some other security benefits - ephemeral keys

Elgamal Key Generation

Bob:

1. Choose large prime p
2. Choose primitive element g\in\mathbb{Z}^*_p or in a subgroup of \mathbb{Z}^*_p
3. Choose k_{pr}=b\in\{1,2,...,p-1\}
4. Compute B \equiv g^b\mod p
5. Publish public key k_{pub}=(p,g,B)

Elgamal Key Generation

Alice:

1. Choose a\in \{1,2,...,p-1\}
2. Compute ephemeral key
   • k_E\equiv g^a\mod p
   • Remember ephemeral means the key is generated every time communication happens
3. Compute masking key
   • k_M\equiv B^a\mod p
4. Encrypt message x\in\mathbb{Z}^*_p
   • y\equiv x\cdot k_M\mod p
5. Send (k_E,y)

Elgamal Decryption

1. Compute masking key
   • k_M\equiv k_E^b\mod p
2. Decrypt message
   • x\equiv y\cdot k_M^{-1}\mod p

Computational Efficiency

To calculate Bob's private key we use one exponentiation

Alice has to do two binary exponentiations to send a message to Bob

• Both the exponentiations during encryption can be pre-computed during downtime
• We can also improve on the decryption step using Fermat’s little theorem
• Fermat’s Little Theorem: a^{p-1}\equiv 1\mod p

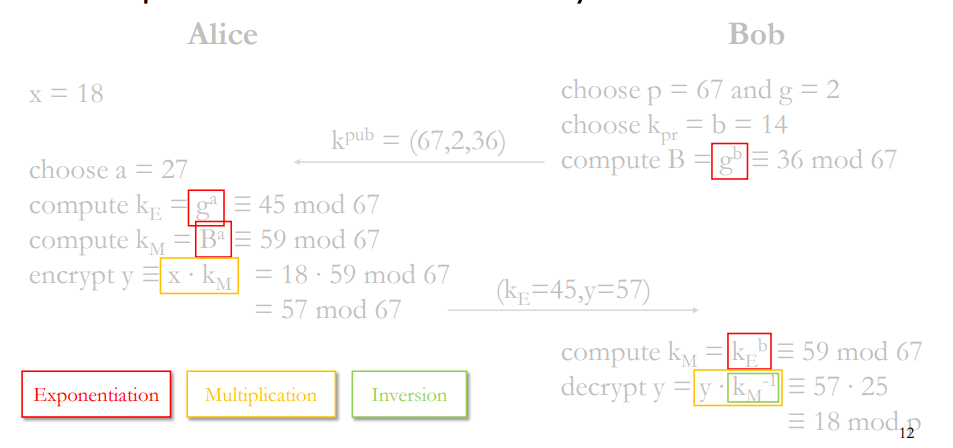

  1. Compute k_M=k_E^b\mod 67
  2. Compute k_M^{-1}
  3. Decrypt y=y\cdot k_M^{-1}\mod p

Practicalities

• Elgamal is a probabilistic encryption scheme. It uses an ephemeral key pair a and k_E=g^a\mod p
• Elgamal has a major weakness if you reuse an ephemeral key, and is also less efficient than simply using Diffie-Hellman than AES
• The other form of Elgamal is a scheme for digital signatures, variants of which are much more popular

Elgamal Digital Signature

Bob:

1. Choose g,p
2. Choose k_{pr}=b\in\{1,2,...,p-1\}
3. Compute k_{pub}=B\equiv g^b\mod p
4. Publish public key k_{pub}=(p,g,B)

Then decide the ephemeral key k\in\{1,2,...,p-2\} where \gcd(k,p-1)=1

• r\equiv g^k\mod p
• s\equiv(m-b\cdot r)\cdot k^{-1}\mod p-1

Bob sends the message, and r and s

Alice to verify:

• ver_{k_{pub}}(m,(r,s) =\\ g^m = B^rr^s\mod p

Proof

Signature: s=(m-b\cdot r)\cdot k^{-1}\mod p-1

• \therefore s\cdot k=x-b\cdot r \mod p-1
• \therefore x=b\cdot r+k\cdot s \mod p-1

Then

• g^x\equiv B^rr^s\equiv(g^b)^r(g^k)^s \mod p
• g^x\equiv g^{br}\cdot g^{ks}
• \therefore g^x\equiv g^{b\cdot r + k\cdot s}\mod p

Recall: a^{p-1}\equiv 1\mod p for some m

• a^m\equiv a^{q\cdot(p-1)+r}\mod p
• \therefore a^m\equiv (a^q)^{(p-1)}\cdot a^r\mod p
• \therefore a^m\equiv 1\cdot a^r\mod p
• So a^m\equiv a^{m \mod p-1}\mod p

If exponents are equal \mod p-1, then terms are equal \mod p

Practicalities

• As with RSA it’s customary to hash the message and use H(m) not m
• The combined message and signature m, (r,s) is roughly 3 times the size of the prime p, which makes Elgamal signatures quite inefficient
• Note that the signature s\equiv (m-b\cdot r)\cdot k^{-1}\mod p-1 is calculated in a prime order subgroup of \mathbb{Z}_p^*
• Without hashing Elgamal is vulnerable to existential forgeries, and key recovery is possible if you reuse the ephemeral key k

DSA

• Based on Elgamal, DSA was developed by NIST as an alternative to RSA
• Computed in a subgroup of prime order q, which is usually 160 bits
• This means the signature (r, s) is 320 bits
• Hashing is enforced by the algorithm, and a hash function must match the key size
  • e.g. SHA-1 for 160-bit q, SHA-256 for 256 bit q
• Index calculus does not apply to the sub-group, so 160 bit DSA has a security of 80 bits
  • In practice larger keys would be required now

ECDSA

• Identical to DSA, ECDSA operates on an elliptic curve over \mathbb{Z}_p with the signature calculated over a subgroup of prime order \#q
  • More efficient, does not require modulus of thousands of bits
• Security level is based on generic attacks against EC
  • i.e. \sqrt{|\#q|}
• Deterministic generation of k is often used for safety (RFC 6979)
  • This is where the ephemeral key isn’t random, it’s based off the hash of the message
  • This is because reusing the ephemeral key is bad news
• Other variants like EdDSA using Edwards curves (Ed25519 / Ed448) exist
