Network Security

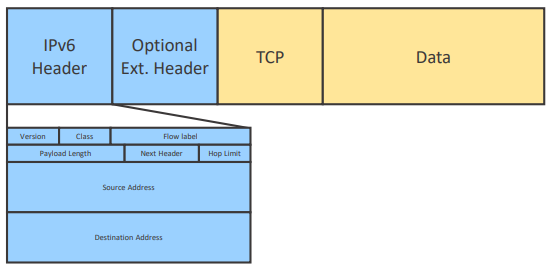

TCP/IP

• Each protocol carries the protocol in the layer above by appending headers to it

• IP is connection-less and state-less
  • Best effort service
  • No delivery guarantee
  • No order guarantee
• IPv4 No guaranteed security support
• IPv6 security support is guaranteed - IPSec

IPSec

• Optional in IPv4, mandatory support in IPv6
• Two major security mechanisms
  • IP Authentication Header (AH)
  • IP Encapsulation Security Payload (ESP)
• Does not contain any mechanisms to prevent traffic analysis

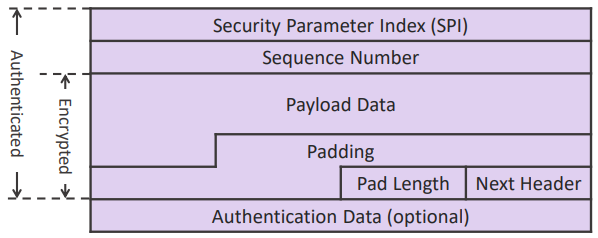

Encapsulation Security Payload

• Includes an additional header within the IP packet that describes what encryption and authentication is in use

Security Parameter Index

• Stores security parameters e.g. crypto protocol and keys

• Established by Internet Security association and key management protocol (ISAKMP) during the Internet Key Exchange (IKE) handshake

  • Uses Diffie-Hellman for key exchange

• The SPI references the entry in a table that corresponds to this session’s parameters

• ESP uses either transport or tunnel modes

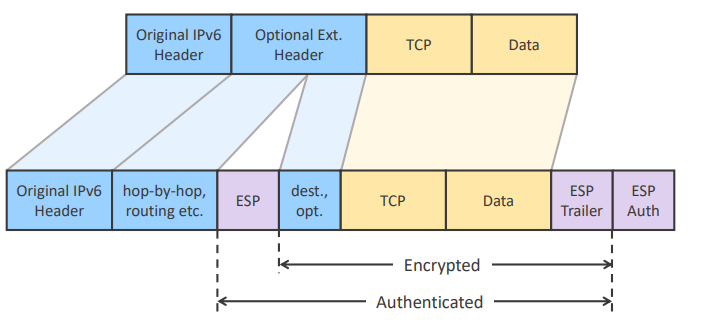

Transport mode

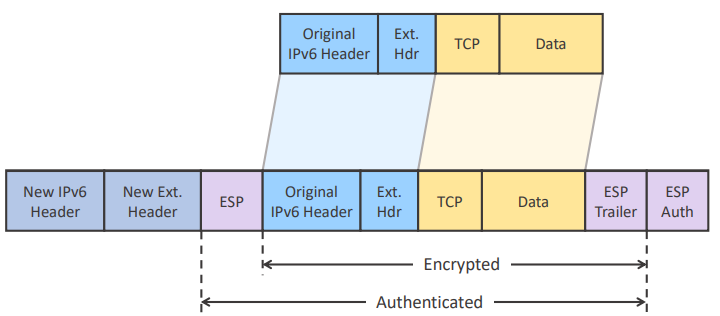

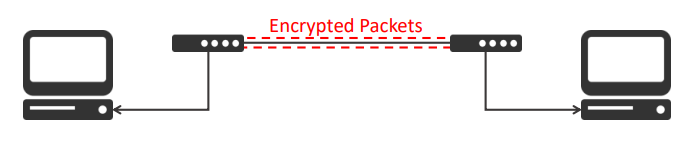

Tunnel mode

Transport vs Tunnel

• Transport mode simply encrypts packets, providing host-to-host encryption but using the original header

• Prevents contents being read, but does not stop traffic analysis or manipulation of the header

• Tunnel mode (usually gateway-to-gateway) protects some segment of a channel with encryption

• Provides some resistance to traffic analysis, and completely protects manipulation of the payload

• VPNs are commonly implemented this way

Network Attacks

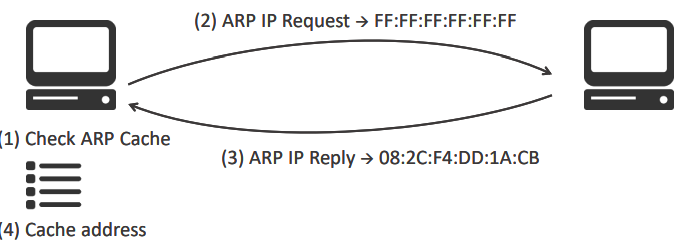

ARP

• ARP is a protocol used to obtain physical MAC addresses for given IPs
  • It is used prior to constructing IP and TCP packets for communication
  • Network layer

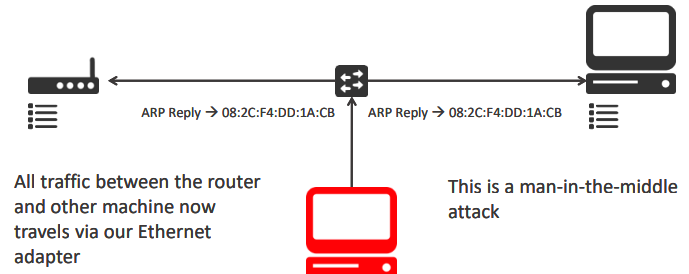

ARP Cache Poisoning

• We can simply send an unrequested ARP reply, and overwrite the MAC address in a host’s ARP cache with our own

ARP Protection

• Some OSs ignore unsolicited ARP requests, or can be configured to use ARP differently
• Some software, such as intrusion detection packages, will include ARP spoofing detection
  • Maintain a log of current MAC:IP assignments and ARP requests / replies

DNS

• DNS translates domain names into IP addresses
• DNS packets are UDP
  • Stateless on the transport layer
• DNS resolvers will cache the IP for a while

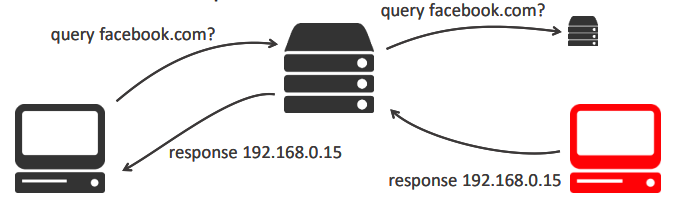

DNS Spoofing

• If we poison the cache of a nameserver people are using, we can replace a website lookup with our IP
• Can be achieved through prior ARP cache poisoning, a reply flood or a Kaminsky attack

DNS Protection

• Random query numbers help protect against spoof replies
• Since the Kaminsky attack, most resolvers now randomise the source port too
• DNSSEC aims to tackle DNS exploits by authenticating the name server and providing integrity for the messages

Denial of Service

• A denial of service attack is an attempt to make a machine or network resource unavailable to its authorised / intended users
• This will usually involve flooding a machine with enough requests that it can’t serve its legitimate purpose
  • ping flood
• A distributed denial of service occurs where there is more than one attacking machine

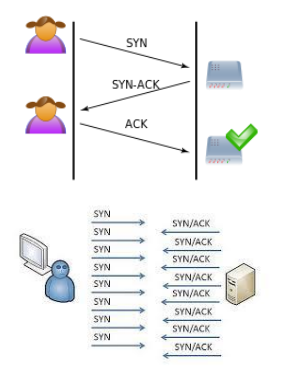

TCP Syn Flooding

• Attacker initiates a genuine connection but then immediately breaks it
• Attack never finishes 3-way handshake
• Victim is busy with the timeout
• Attack initiates large number of syn requests
• Victim reaches its half-open connection limit

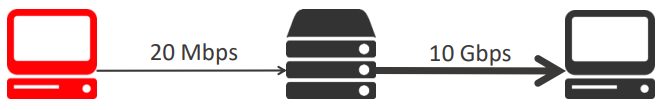

Amplification Attacks

• Regular attacks are your bandwidth vs your target’s
• Amplification attacks utilise some aspect of a network protocol to increase the bandwidth of an attack

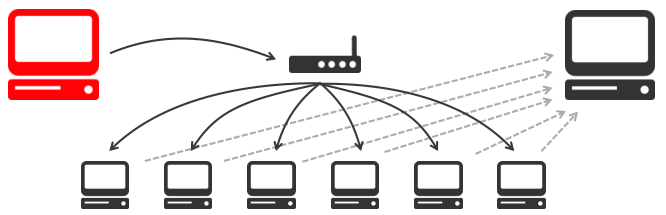

Smurf and Fraggle Attacks

• Smurf attacks broadcast an ICMP ping request to a router, but with a spoofed IP belonging to the victim
• A fraggle attack is identical in principle, using UDP echo packets

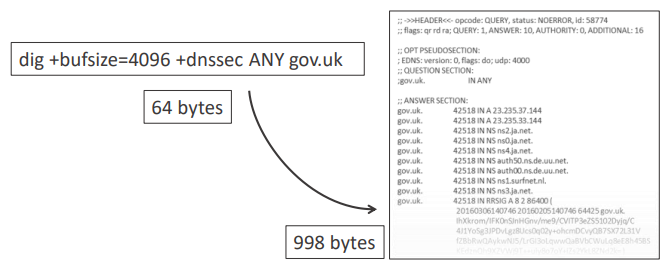

DNS Amplification

• Recursive resolvers respond to DNS queries then return a response
• This response can be many times larger than the query

• In an ideal world, all DNS resolvers would:
  • Use an authorised list of requesters
    • e.g. ISPs allowing requests from only their customers
  • Egress filtering
• Many DNS servers are set up incorrectly, and will happily amplify your traffic - Open resolvers
• Botnets maintain lists of these open resolvers and there are projects attempting to shut these down

NTP Amplification

• NTP is a protocol for synchronising time between machines
• Extremely similar to DNS amplification
• MON_GETLIST request returns the list of the last 600 contacts
  • Gives 200x amplification
  • MON_GETLIST is deprecated because of this attack

Slow Loris

• Opens numerous connections to a server
• Begin an HTTP request
  • Send just enough traffic to stop the connection from closing
  • Apache2 creates a new thread for each connection
  • More connections slow the server down significantly
• The attack only sends bytes of data at a time making it extremely easy to do
